Disc Filter Backwash Cleaning Machine

FILTER CLEANING EQUIPMENT

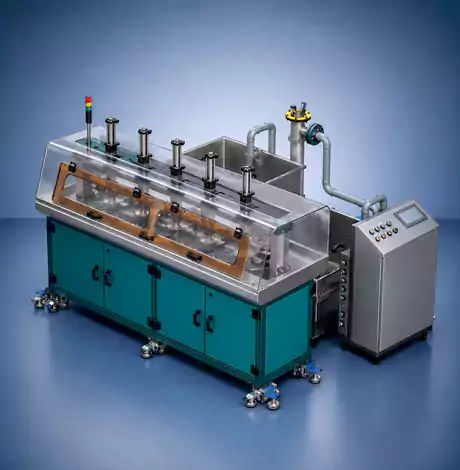

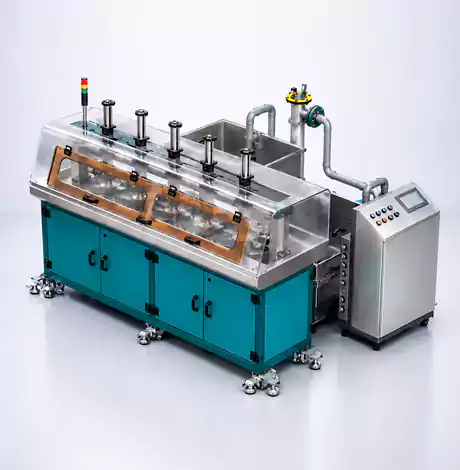

Automatic Disc Filter Backwash Cleaning Machine

Automatic High-Pressure Backwash Cleaning Machines

Purofiltec manufactures Automatic High-Pressure Backwash Cleaning Machines for effective cleaning of metallic disc filters used in polymer melt filtration and industrial process applications. The system is designed to remove polymer residues, gels, carbon deposits, pigments, and process contaminants from disc filter assemblies while preserving the integrity of the metallic filtration media. This mechanism works on an inside-to-outside backwash which is from the Hard Hub to the disc surface media.

View Cleaning Principle Send Technical Enquiry
Automatic Cleaning
High-Pressure Backwash
PLC Controlled
Automatic Disc Filter Backwash Cleaning Machine
Filter Cleaning Equipment
Automatic Disc Filter Backwash Cleaning Machine
Automatic High-Pressure Backwash Cleaning
PRODUCT OVERVIEW

Automatic High-Pressure Backwash Cleaning

Purofiltec manufactures Automatic High-Pressure Backwash Cleaning Machines for effective cleaning of metallic disc filters used in polymer melt filtration and industrial process applications. The system is designed to remove polymer residues, gels, carbon deposits, pigments, and process contaminants from disc filter assemblies while preserving the integrity of the metallic filtration media. This mechanism works on an inside-to-outside backwash which is from the Hard Hub to the disc surface media.

Using a controlled high-pressure backwash process, the machine delivers uniform cleaning performance, reduces manual labor, and extends the service life of disc filters. The automated cycle ensures repeatable cleaning quality with minimal operator intervention.

CLEANING PRINCIPLE

Disc filters are securely mounted inside the cleaning chamber, where they are cleaned using precisely controlled high-pressure hydro-air jet technology. The system effectively removes polymer residues and contaminants while protecting the filter media.

01

Reverse Flow Backwash Cleaning

High-pressure hydro-air jets are directed from the hub perforations toward the outer filter surface, reversing the normal filtration flow. This backwash action efficiently dislodges embedded contaminants from the mesh media without damaging the filter.

02

Simultaneous Multi-Disc Cleaning

The machine is capable of cleaning up to six disc filters simultaneously.

03

PLC-Based Automatic Operation

All cleaning parameters—including cleaning duration, operating pressure, spray sequence, indexing, and complete cleaning cycle—are fully programmable through the PLC-based control system, ensuring consistent and repeatable cleaning performance.

04

Closed-Loop Water Recirculation System

The cleaning machine incorporates a closed-loop water recycling system. Used cleaning water is collected, passed through a 5-micron cartridge filtration system to remove contaminants, and recirculated back into the process. This minimizes fresh water consumption, reduces wastewater generation, lowers operating costs, and supports environmentally sustainable operation.

KEY BENEFITS

Benefits

Removes polymer and process residues effectively

Restores filter performance

Reduces manual cleaning effort

Improves cleaning consistency

Extends disc filter life

APPLICATIONS

Applications

Automatic Disc Filter Backwash Cleaning Machines are designed for cleaning metallic disc filters used in polymer melt filtration and industrial process applications, helping restore filter performance and reduce manual cleaning effort.

Hard Hub Disc Filters

Polymer Melt Disc Filters

Polymer Melt Filtration Systems

Plastic Extrusion Processing

Polymer Processing Lines

Plastic Recycling Applications

Industrial Process Filtration

Metallic Disc Filter Cleaning Operations

ENGINEERED PERFORMANCE

Key Features

Designed for effective metallic disc filter cleaning, the automatic backwash system provides uniform cleaning performance, repeatable operation, reduced manual intervention, and extended service life of filter elements.

Automatic Backwash Cleaning

Suitable for Metallic Disc Filters

Uniform Cleaning Performance

PLC / Touch Screen Operation

Reduced Manual Intervention

High Cleaning Efficiency

Repeatable Cleaning Cycle

Long Service Life of Filter Elements

FAQ

Frequently Asked Questions

Technical answers to common questions about Automatic Disc Filter Backwash Cleaning Machines.

It cleans metallic disc filters by using high-pressure backwash and surface washing to remove polymer residue, gels, carbon deposits, and other contaminants.

Yes. The machine can be operated through PLC and touch screen controls with adjustable cleaning cycles.

Yes. The system is suitable for hard hub disc filters and other metallic disc filter assemblies.

Yes. The machine can be operated through PLC and touch screen controls with adjustable cleaning cycles for consistent and repeatable cleaning performance.

Yes. The system is suitable for hard hub disc filters and other metallic disc filter assemblies used in polymer melt filtration and industrial process applications.

High-pressure hydro-air jets are directed from the hub perforations toward the outer filter surface, reversing the normal filtration flow to remove embedded contaminants from the filter media.
